Night log · Friday 9 October 2026

Four hours on the Veil, then the Pleiades

The plan

Scope Nights rated Friday "Good, mostly clear" with a 1% Moon: the best night of the week. It was also the first night on the TH10 equatorial wedge. The idea was to go deep on one colourful target rather than sample several: four hours on the Eastern Veil, about three times the first night's data, then the Pleiades from 00:30 until dawn. The Pleiades are blue reflection nebulosity that needs a properly dark, moonless sky and no narrowband filter.

20:30–00:30: NGC 6992 Veil
Veil settings: 30 s · gain 200 · dual-band
00:30–05:25: M45 Pleiades
Pleiades settings: 30 s · gain 100 · IR-cut
Moon: New, 1%

Setting up: polar alignment under cloud

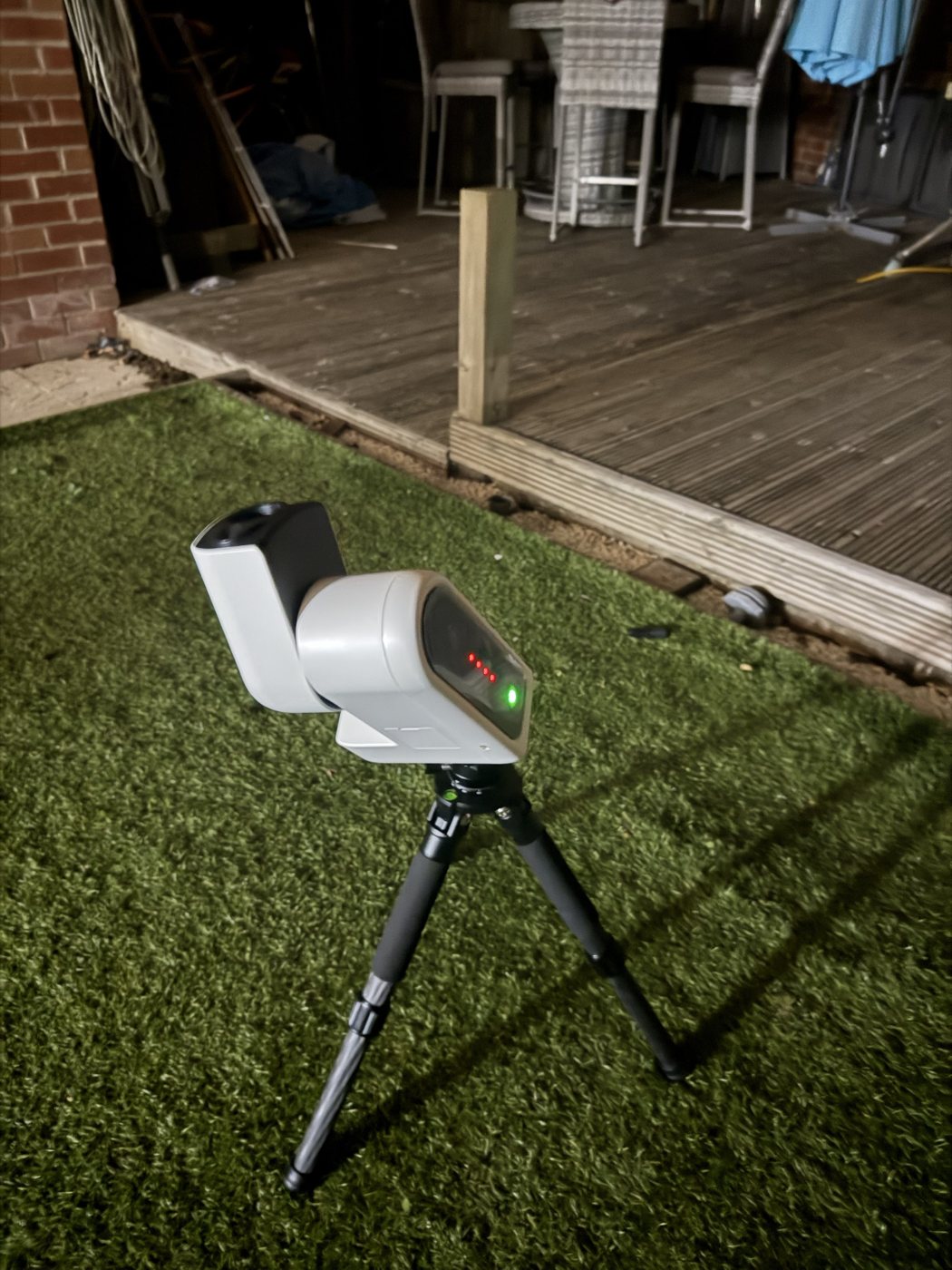

The Seestar S30 Pro on its tripod and EQ wedge on the lawn at night, arm raised mid-alignment — Set up in the garden on the TH10 wedge, with the arm swung round mid-way through the app's polar-alignment routine

The app's polar-alignment routine reported the scope pointing 103° away from the pole, an impossible-looking figure. Claude took a test shot with the telescope's wide camera, which showed lumpy cloud lit orange from below. The alignment routine had been photographing cloud.

Three weather models disagreed about the night. The Met Office model showed passing low cloud and the European and German models showed clear skies. Claude set the wide camera to check the sky every five minutes. By 20:35 it had cleared, and the next alignment read 0.7° in each axis, inside the 1° target.

One more snag: the telescope refused to take pictures for Claude while the phone app was still open. The app holds on to the main camera after alignment. Closing the app fixed it.

The Veil, 20:49 to 00:30: 272 frames, 2.3 hours

Centred to within 1.1 arcminutes after two plate solves, and autofocus confirmed sharp focus.
The first frame showed 400 stars, the clear-sky level, and it stayed at 400 every hour. The forecast 21:00 cloud never arrived.
Hourly refocus moved the focuser 10 steps as the night cooled.
Two scheduled re-centres timed out talking to the scope. Capture carried on regardless, and the next re-centre worked.

I was worried the artificial lawn under the tripod might let it sink. Claude plate-solved every sixth frame of the night to check. Between deliberate moves the pointing held still to a fraction of an arcminute for 10–15 minutes at a time, with no slow creep, so the tripod and polar alignment were solid. The only movement was the dither nudges, which turned out to be about five times larger than intended on the wedge. That gets fixed before the next night.

Results: the Veil

272 frames came off the telescope, and 236 of them aligned cleanly: 1 hour 58 minutes of data, against 46 minutes on the first night. The office PC processed it in under ten minutes, and the pictures were on my phone at 01:00.

The Eastern Veil Nebula's arc in red and teal, with fine braided filaments and stars reduced — NGC 6992 · 236 × 30 s (1 h 58 min) · HOO palette, stars reduced, cropped to the arc

Compared with the first night, the extra time shows in the filaments. The teal oxygen edge is now continuous along the leading side of the shock front, and the fine braided strands at the southern end are separated rather than smeared.

Full field around the Veil in the HOO palette — Full field, HOO palette

Full field around the Veil in natural colour — Full field, natural colour

Results: two nights combined

Then the first multi-night combine. All 412 Veil frames from Tuesday and Friday went into one stack. Each night was calibrated with its own dark frames, since Tuesday used 20-second exposures and Friday 30-second ones. Then every frame was aligned to one reference and stacked, with the cleaner frames counting for more. 374 frames made it in: 2 hours 46 minutes in total.

The Eastern Veil Nebula from two nights combined: dense braided red and teal filaments along the arc — NGC 6992 · Tue + Fri combined · 374 frames (2 h 46 min) · HOO palette, stars reduced · colour calibrated against catalogue star colours

The braided structure along the arc, where the shock wave from the supernova is hitting denser gas, is the clearest it has been. The wider frame also starts to pick up faint wisps of the rest of the Cygnus Loop.

These are first versions. The dark frames are taken at the end of the night, after the Pleiades, so Friday's frames were processed without them. Both the Friday stack and the combine will be re-processed with darks in the morning, and through the upgraded processing once it's ready.

Results: the Pleiades

Capturing until dawn. Added once processed.
